One Rehab Illusion

Revolutionary lightweight but strong car portable mobility scooter

£2,599.00 ex. VAT

This ultra-lightweight mobility scooter can be disassembled into parts for easy lifting and takes around 30 seconds to reassemble

Motability Logo
Available for lease through the Motability scheme – contact us for more information.

Description

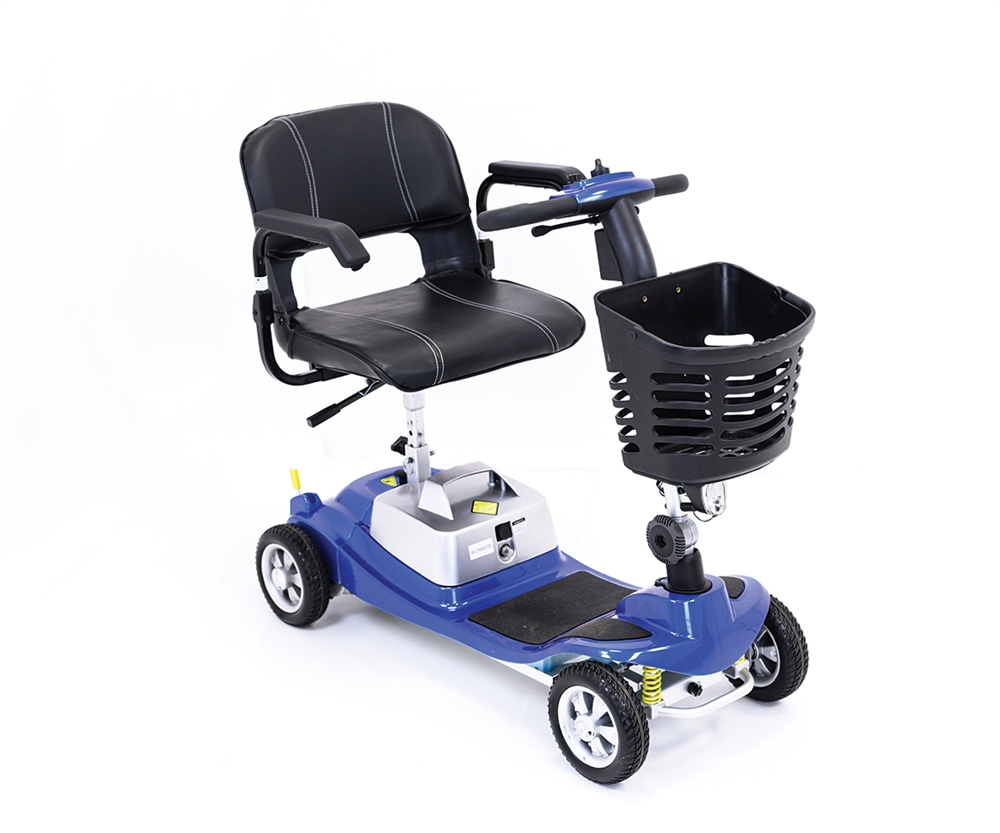

ILLUSION
AVAILABLE IN 3 DIFFERENT MODELS
The Illusion is a revolutionary lightweight but strong car portable mobility scooter which can be disassembled into parts for easy lifting, the heaviest part weighing less than 10kg (similar to a bag of shopping). Taking around 30 seconds to reassemble it ensures you won’t be wasting any of your valuable time. It also features an ultra-lightweight lithium battery that is both accessible and simple to remove so you can easily move it to a preferred charging location. A second charging port is located in the tiller which allows for easy access when disassembling is not needed. The scooter also has a powerful LED light for lower light driving conditions. The tiller is height adjustable which provides exceptional legroom even for the taller users. Furthermore, this product is manufactured with aircraft-grade aluminium for optimum durability ensuring top quality. Illusion is also available with a endurance and epic battery pack allowing you to double or triple your travel distance for those longer journeys. Not only super light, the unique shrouding is of contemporary design. The advanced engineered full front and rear suspension complete with the fully adjustable luxury padded seat gives a fantastically comfortable and enjoyable driving experience. Together with the secure-grip delta handlebar, which gives you full control over manoeuvring the scooter.
Model Illusion Illusion Endurance Illusion Epic
Speed (max) 4mph 4mph 4mph
Travel Range (Max)* 10 mi. 20 mi. 30 mi.
Battery Type Lithium Lithium Lithium
Battery (Max) 2 x 12V 12Ah Lithium 2 x 12V 21Ah Lithium 2 x 12V 34Ah Lithium
User weight (Max) 18 st. (115 kg) 18 st. (115 kg) 18 st. (115 kg)
Heaviest part when disassembled 9.9kg 9.9 kg 9.9 kg
Total Weight (without batteries) 27.9 kg 27.9 kg 27.9 kg
Battery Box Weight 3 kg 4.5 kg 6 kg
Total Weight (with batteries) 30.9 kg 32.4 kg 33.9 kg
Overall Length 1035 mm (41 in.) 1035 mm (41 in.) 1035 mm (41 in.)
Overall Width 490 mm (19 in.) 490 mm (19 in.) 490 mm (19 in.)
Overall Height 920 mm (36 in.) 920 mm (36 in.) 920 mm (36 in.)
Folded Height (tiller down/seat off) 450 mm (18 in.) 450 mm (18 in.) 450 mm (18 in.)
Climbing Gradient (Max)
Turning Radius (Min) 1370 mm (54 in.) 1370 mm (54 in.) 1370 mm (54 in.)
Ground Clearance (Mid Frame) 55 mm (2 in.) 55 mm (2 in.) 55 mm (2 in.)
Seat Deluxe Adjustable Deluxe Adjustable Deluxe Adjustable
Seat Width 460 mm (18 in.) 460 mm (18 in.) 460 mm (18 in.)
Seat Height 400-480 mm 400-480 mm 400-480 mm
Tyre Type Puncture Proof Puncture Proof Puncture Proof
Front/Rear Tyres 190 mm (7.5 in.) 190 mm (7.5 in.) 190 mm (7.5 in.)
Suspension Adjustable Front & Rear Adjustable Front & Rear Adjustable Front & Rear
Lights Front LED Front LED Front LED
Basket Black Plastic Black Plastic Black Plastic
Charger 2 Amp Lithium 2 Amp Lithium 2 Amp Lithium
Charger Type Off-board via Battery Box/Tiller Charger Off-board via Battery Box/Tiller Charger Off-board via Battery Box/Tiller Charger
Tiller Lock Yes Yes Yes
Tiller Type Easy Grip Delta Easy Grip Delta Easy Grip Delta
