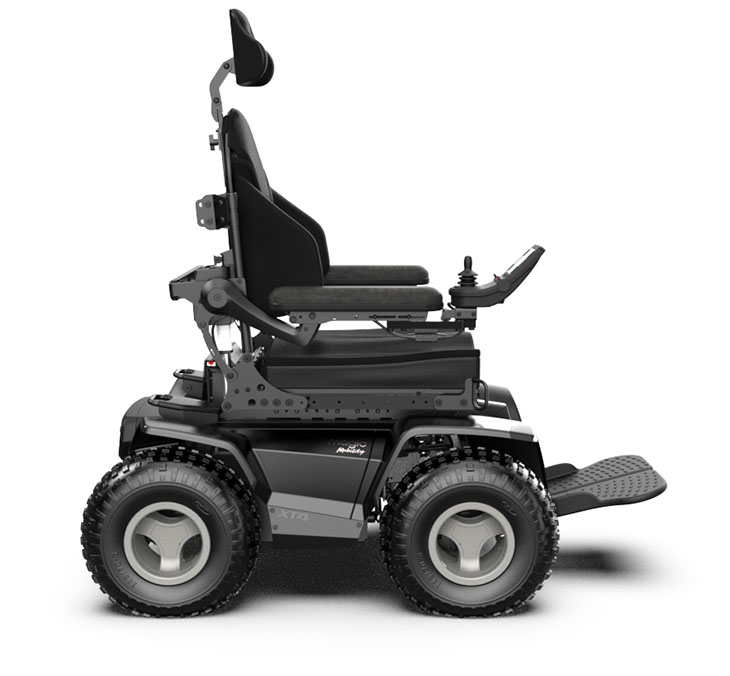

XT4 – Four Wheel Drive Electric Wheelchair
Push your outdoor boundaries further than ever before
Step up to driving the world’s most advanced 4×4 powerchair
The XT4 builds on Magic Mobility’s unrivalled experience in delivering extreme off-road 4×4 powerchair performance by offering even greater stability, range, comfort and control than ever before.
The XT4’s patented front and rear suspension, unique servo-powered steering and high-capacity batteries combine with the proven capabilities of knobby, low pressure tyres driven by unstoppable torque to make it the ultimate chair for outdoor adventurers.
- Drive mode: 4 x 4
- Motors: 4 x 700W Gear in line
- Environment: Adventurous outdoor exploration and rural work
Unstoppable off-road traction
Each of the XT4’s four knobby off-road tyres are driven by high efficiency, high-torque 700 Watt motors. Power easily through mud, sand, snow or over kerbs and other obstacles. Fitted with two massive 115 Ahr batteries as standard, the XT4 will take you further off-road than ever before.
Superior patented suspension
Front and rear wheels are mounted on their own pivoting arms that adjust independently to follow the contours of the terrain. This helps keep all four wheels on the ground to deliver more traction, a smoother ride, greater stability and more control across even the most extreme off-road terrains.
Servo powered steering for precise control
The XT4 steers using a combination of differential wheel speeds and an industry-leading servo steering module. Even on slippery or low traction surfaces, the chair’s intuitive steering delivers a feeling of reliability, responsiveness and control, both in forward and reverse.
Colour options and styling
Choose from two vibrant colours or sleek Midnight Black. Aerodynamically styled injection moulded body panels are easily detached for maintenance or replacement.
Proudly Australian made
Since 1994, we have been designing, engineering and manufacturing highly robust, all terrain powerchairs in Melbourne, Australia, so that active users can experience a world that’s not flat.
Splash resistant (not waterproof)
Please remember, the wheelchair has electric motors and must not be driven through water, into rivers, creeks or the sea.
| Feature | Specification |
|---|---|
| *Length of base | 1000mm / 39″ (*legrest choice and seating size may increase chair length/width) |
| *Width of base | 700mm / 27.5″ |
| Floor to top of seat pan height | 480mm / 19″ |
| Ground Clearance | 125mm / 5″ |
| User weight limit | 182kg / 400lb fixed frame, 160kg / 350lbs with lift & tilt |
| Top speed | 10kph / 6.2mph |
| Top speed at full seat elevation | 5kph / 3.1mph |
| Turning Radius | 1410mm / 55.5″ |
| Minimum chair weight (no power lift) | 185kg / 408lb |
| Standard chair weight (with power lif, tilt, recline & legrests) | 220kg / 485lb |
| Motors | 4 x 700W, Gear In Line |
| Motor IP rating 54 (splash resistant but not waterproof) | The wheelchair has electric motors and must not be driven through water, into rivers, creeks or the sea. |
| Wheels | Off-road pneumatic 145 / 70-6 black |
| Batteries | 115Ahr (C20) |
| Controller | R-Net controller with LCD display or LED option |
| Legrest options | Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating |
| Backrest and seat | Adjustable seat pan (12”/305mm deep to 24”/610mm wide) to fit MPS / Rehab or aftermarket seating options |
| Colours | Three colours standard |
| Tie down points | Crash test compliant |
