Description

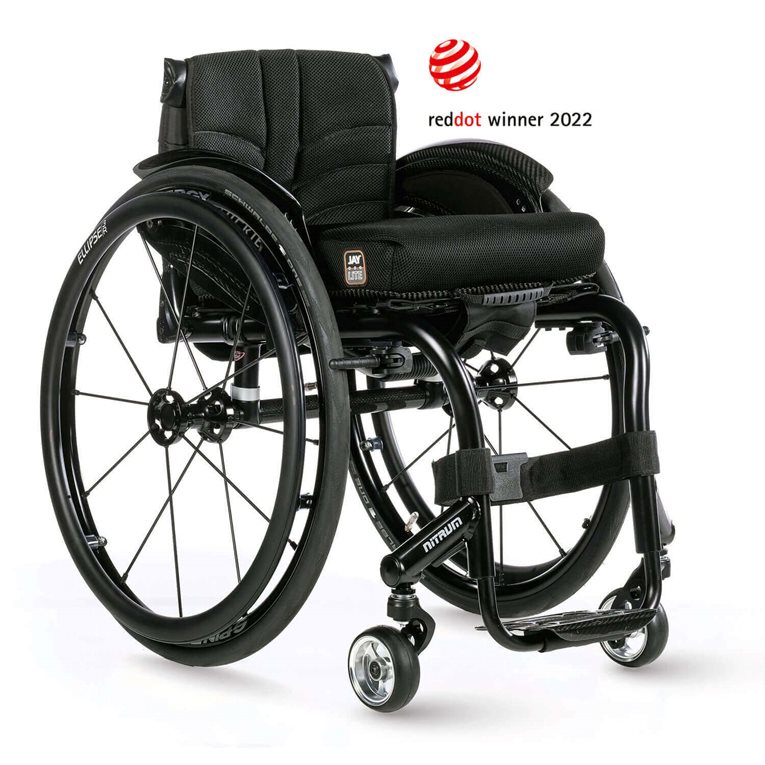

QUICKIE Nitrum Rigid Wheelchair

Precision-engineered to turn your energy into motion, so you can go further, faster and for longer.

Energy into Motion.

The Nitrum is the lightest adjustable aluminium chair on the market at just 4.9kg lifting weight. Combines weight rigidity, custom fit and fine tuning to offer the most energy efficient chair QUICKIE have ever produced. The Nitrum is for users who value pushing efficiency and lightweight design. A revolutionary chair that minimises propulsion effort whilst maximising movement.

Weight & Rigidity

The lightest in its class.

This is innovative engineering at its best. We employ state-of-the-art materials and principles to minimise weight (from 7.5 kg) and maximise strength, so you need less energy to propel.

• Patented oval frame tubing

  With fewer stress points due to its elongated sides, our unique oval tubing is stronger than round as it’s less likely to flex under pressure. It’s also lighter as the shape uses less material.

  • Premium 7020 Aluminium

    Sculpted from high-strength 7020 Aluminium, the frame is specially heat-treated using our patented ShapeLoc technology, so the tubing can be significantly thinner and lighter without any sacrifice to its strength.

    • Hand welded

      Frame clamped castor links and cross-tubes can increase weight and cause energy loss through vibration. The NITRUM is hand-welded into one-complete frame, so you get a stiffer, lighter ride.

      • Backrest bracket

        The forged aluminium backrest bracket is extremely stiff,so it’s significantly more energy efficient without sacrificing the adjustability of the backrest angle or height.

        Precision Control

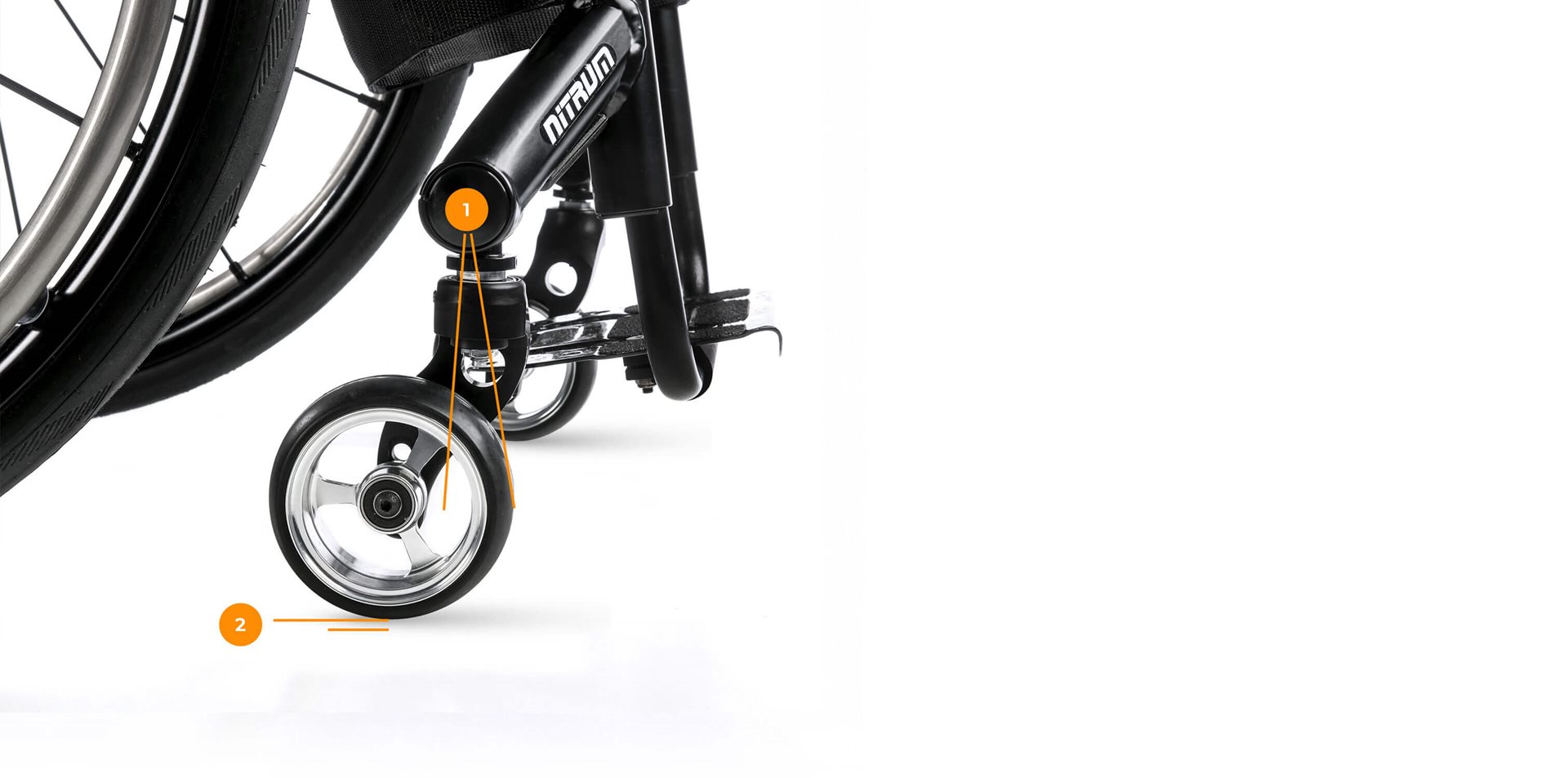

        Patented castor-link

        Instead of multiple parts welded, the castor-link is one hollow-forged component. Stronger, lighter and completely adjustable, the castor angle (1) and height (2) can be changed to improve handling whilst you’re in the wheelchair. The castor link length and angle are also personally-tailored to your wheelchair, for the very-best handling, turning and propulsion efficency.

        Lifting

        A unique-twist to backrest folding.

        Just grab the patented Twist Lock bar with one hand and twist it to release, fold and load the chair into your car. With double-locking, you can also use the same bar to lift it. It’ll also lock without removing your sideguards or low-profile cushion.

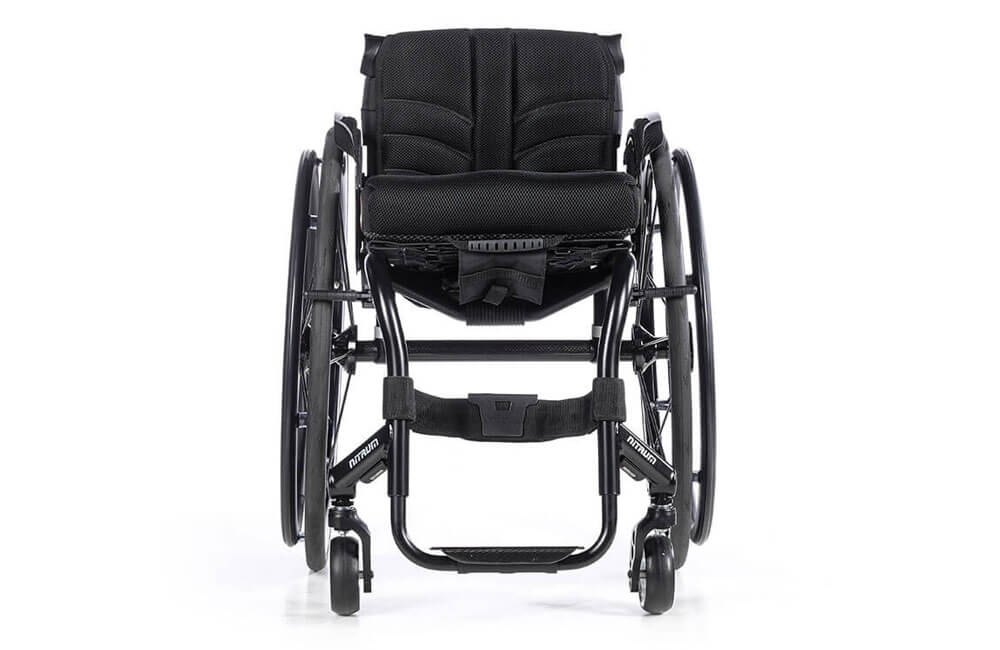

        Adjustability

        A perfect fit for EVERY body.

        Body positioning is crucial for propulsion efficency. When your weight is balanced incorrectly, your wheelchair is more difficult to push. That’s why the NITRUM boasts the largest range of sizes and adjustments in its class, so you can achieve your own perfect fit.

        User-Inspired Innovations

        The first Integrated LEDs with removable battery.

        Mounted on both castor arms and with  3 modes (high, low and blink), the integrated LED’s will light-up your night.  The power pack provides up-to 4 hours of run time and can be easily detached for recharging or to save you 110g weight. How’s that for bright?

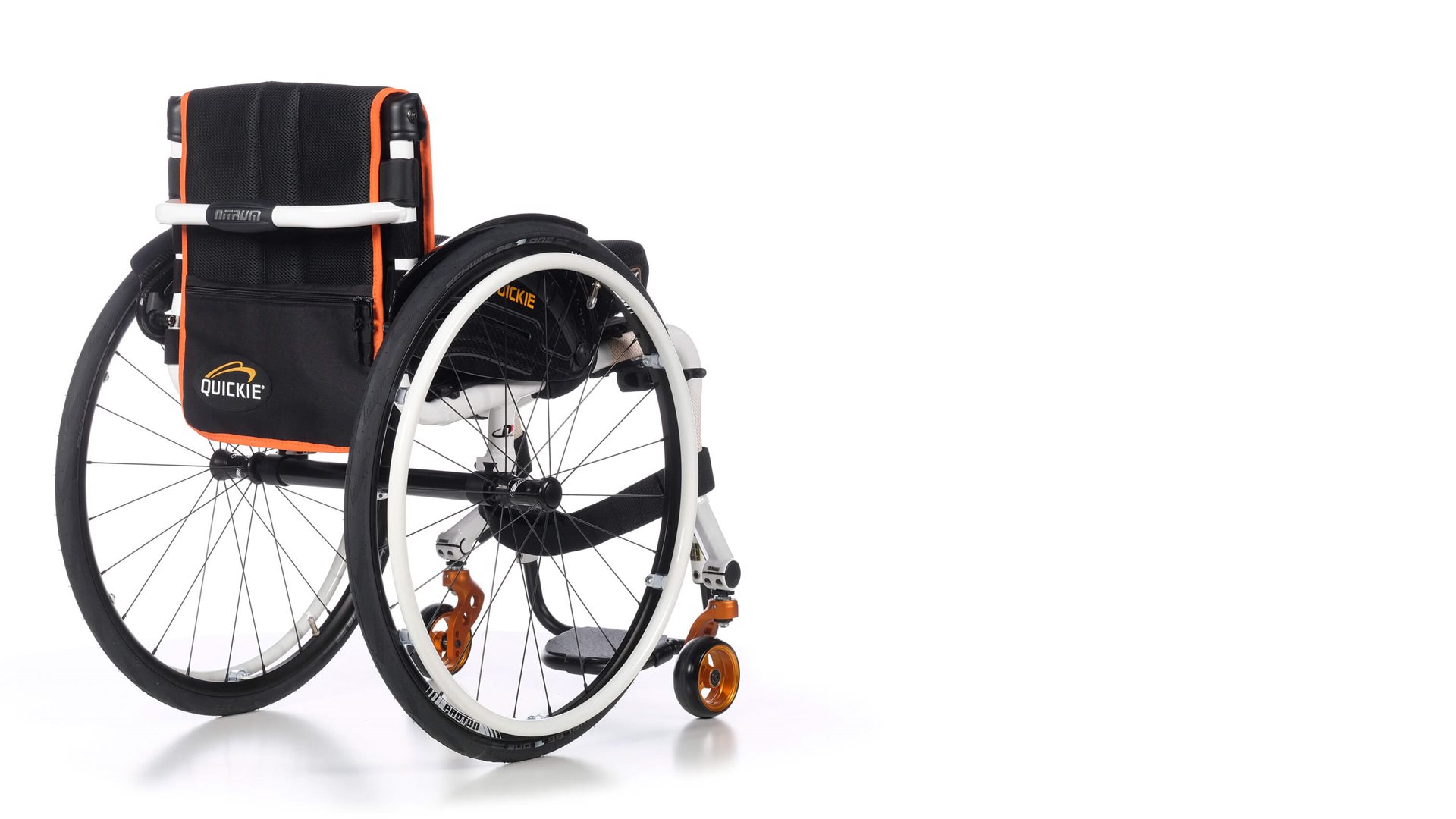

        Exceptional frame construction

        The Pro options for experienced users

        During the development of the Nitrum series, we made it our goal to optimize each component in terms of weight savings and to achieve maximum rigidity. The Nitrum Pro takes this principle to extremes. Its frame is characterized by the fixed welded backrest and fixed welded axle which save weight, increase the frame-stiffness and reduce moving parts. The formula is simple: Less moving parts mean less play, less maintenance and a lower weight.

        Specifications

        Dimensions

        Seat Width:320-500 mm

        Seat Depth:340-500 mm

        Front seat height:430-570 mm

        Rear seat height:370-500 mm

        Backrest Height:250-450 mm

        Back Recline:-17.5° – 10°

        Colours:22

        Performance/Weights

        Maximum User Weight:125 kg

        Total Weight:7.5 kg
        (Transit weight 4.9kg)

        Transportation

        Crash Tested?This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19
