Description
- For indoor and outdoor use, spring-loaded drive unit standard
- Especially good when using indoors: turning on its own axis helps when manoeuvring in confined spaces
- Precise manoeuvring thanks to rigidly attached castor wheels
- The optional laterally suspended support castors enable easy and safe use of single panel ramps
- For permanent and all-day use in independent mobility, even with severe functional disorders
- For working and active people needing a wheelchair for various aspects of everyday life
- The central legrest enables a 90° knee angle
- Ideal for keeping mobile at home and at work
- Effective pressure relief and relaxed positioning for long sitting periods thanks to large electrical adjustment ranges
| Seat width | 380 – 650 |
|---|---|
| Width | 600/600/630/680 bei 12″ 640/640/640/680 bei 14″ |
| Seat depth | 400 – 560 / 400 – 560 / 480 – 530 |
| Lower leg length | 280 – 450 |
| Seat height front (without seat cushion) | 430, 465, 500 / 440, 475, 510 |
| Total height | 980 – 1,060 |
| Back height | 450 – 500 / 530 – 580 / 630 |
| Shank lenght in cm | 280 – 450 |
| Armrest height | 240 – 350 |
| Length with / without footrests | 1,180 – 1,250, 1.060 – 1.150 / 910 |
| Transport length min. | 870 – 930 |
| Transport width min. | 600 – 680 |
| Transport height min. | 630 |
| Front wheel size | 200 x 50 (8″) |
| Rear wheel size | 352 x 58 (12,5″) |
| Max. obstacle height | 60 |
| Turning radius | 800 / 700 |
| Ground clearance | 70 |
| User weight | 120 / 160 |
| Empty weight | 120 – 160 |
| Permissible total weight | 270 / 330 |
| Max. additional load | 10 |
| Speed | 6 / 10 |
| Motor power | 2 x 180 / 2 x 350 |
| Range max. | 25 – 30 35 – 40 |
| Permitted uphill / downhill gradient | 15 % |

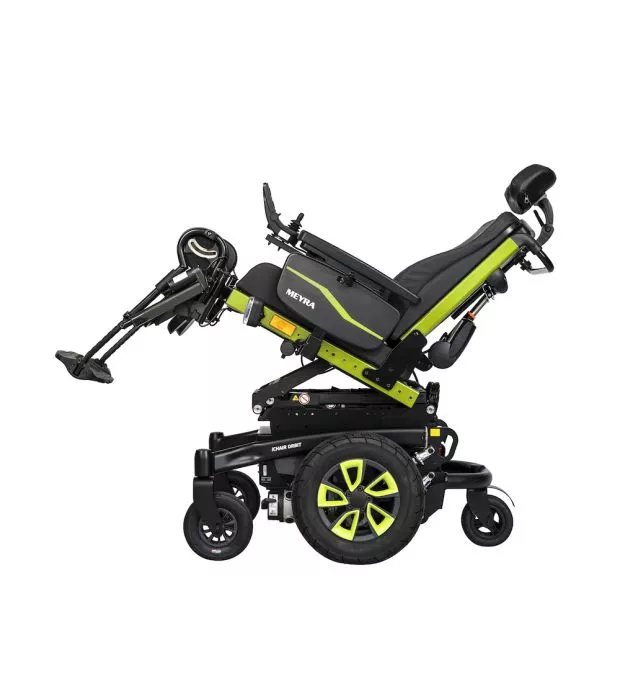

| Seat tilt, electrical | 0° to 30° / 0° to 50° |
| Back angle, electrical | -10° to +50° |
| Seat tilt, mechanical | 1°, 4°, 7°, 10° |
| Back angle. mechanical | -10° to +30° |

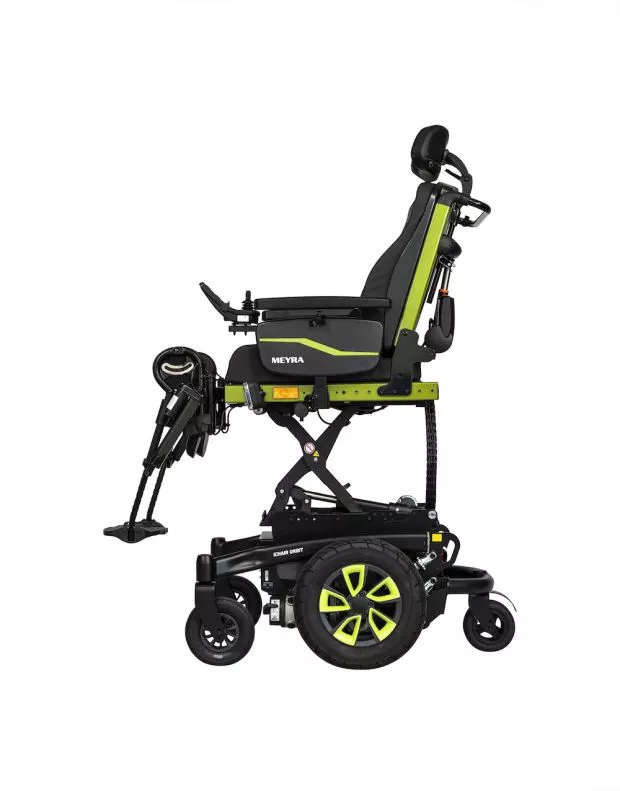

| Seat lift, electrical | 300 |
| Steering type | indirect |
| Stand-up aid with electrical tilt, lift 200 mm | 0° to 45° |
Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
