Description

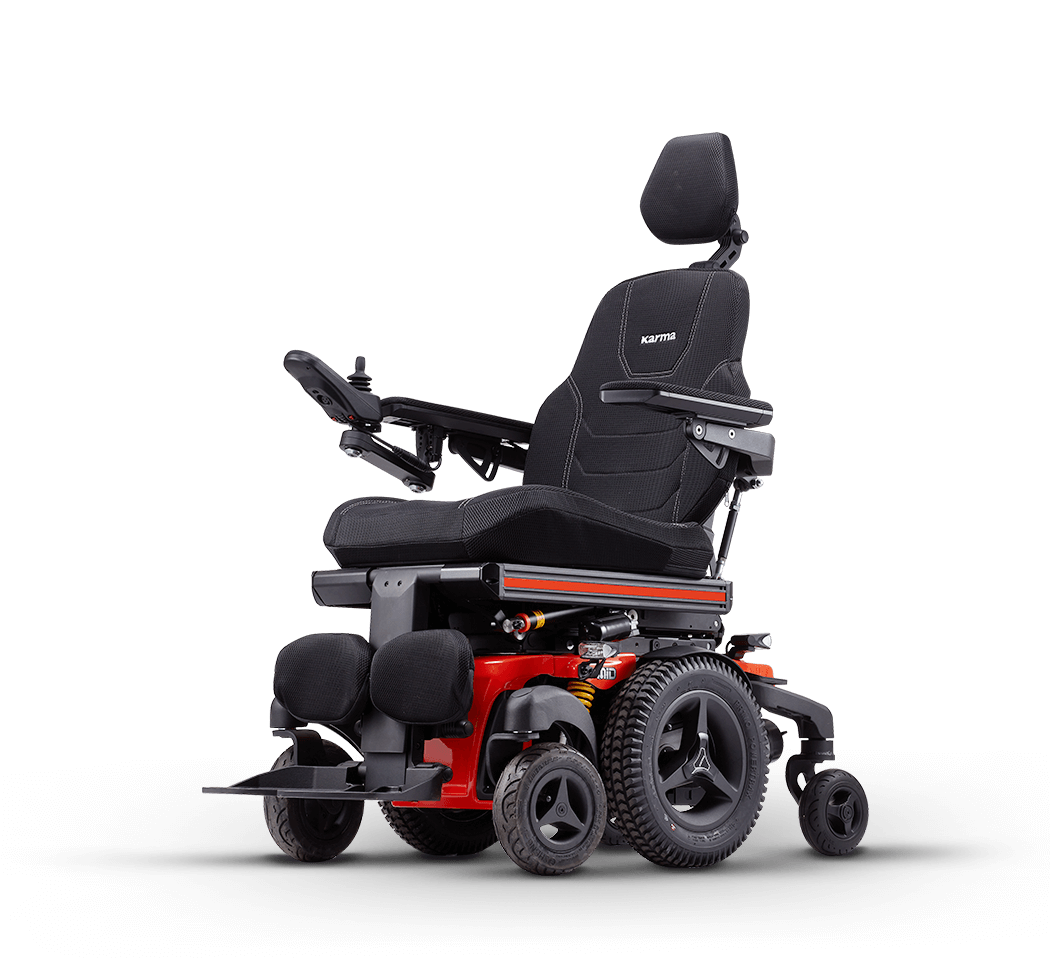

MID Lectus
The Ultimate Comfort and Maneuverability
The MID Lectus (MID-LTS) impresses with its powerful mid-wheel drive chassis, making it extremely compact and maneuverable. The 6 individually mounted wheels with their hydraulic suspension offer a high level of ride comfort and stability. Equipped with the proven Lectus seating system, the MID also offers an extensive range of seating adjustments.
Incredible Indoor Maneuverability
The mid-wheel drive design makes the chair extremely maneuverable in confine spaces. The minimum turning radius is only 62 cm. This, combined with the compact size of the MID chassis and the excellent speed range and battery capacity, makes the wheelchair suitable for both indoor and outdoor use.
Smooth Outdoor Performance
The strong and compact MID chassis is equipped with a fully adjustable 6-wheel suspension system. It can overcome the terrain that is otherwise unbearable for a mid-wheel drive chassis. The suspension evenly distributes the driving impact and is able to overcome curbs up to 7.5 cm.

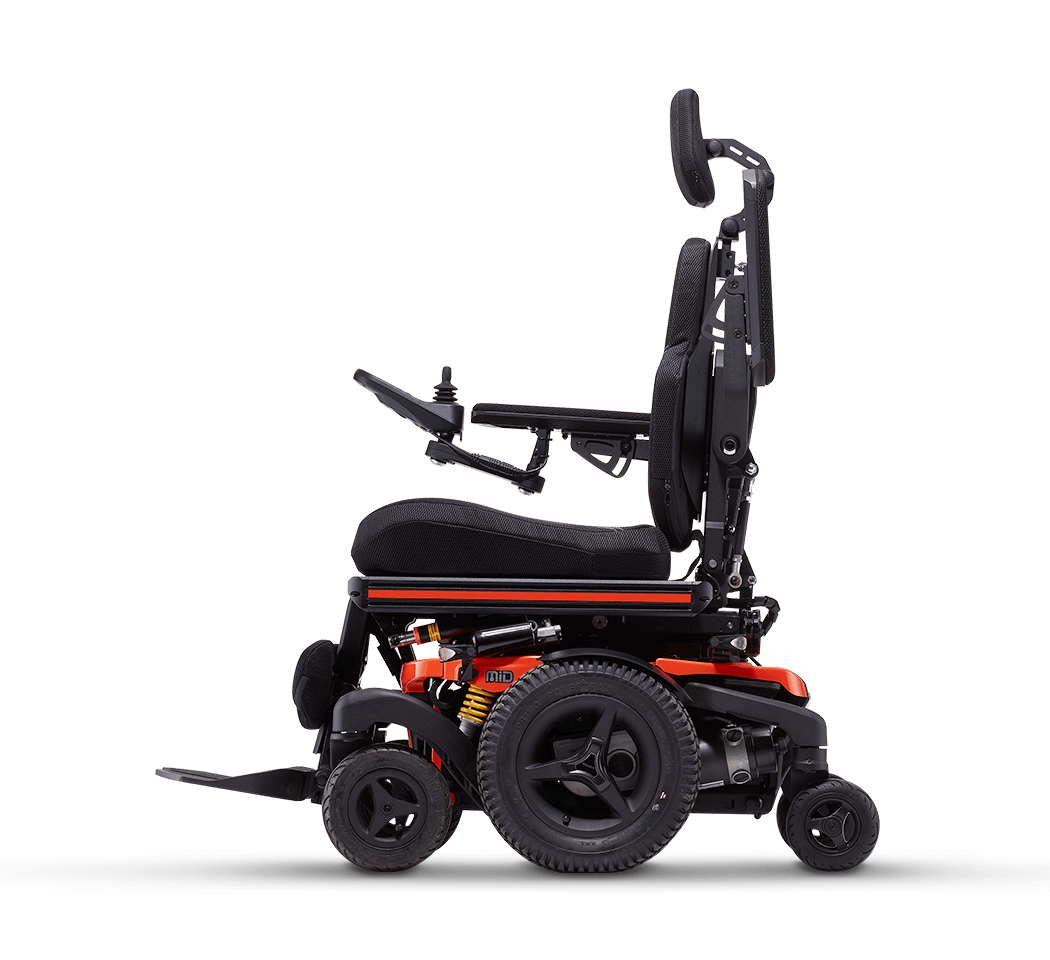

Fully Adjustable Suspension
The stiffness of the suspension can be configurated depending on the individual’s weight, therefore, provides the most confortable ride possible.

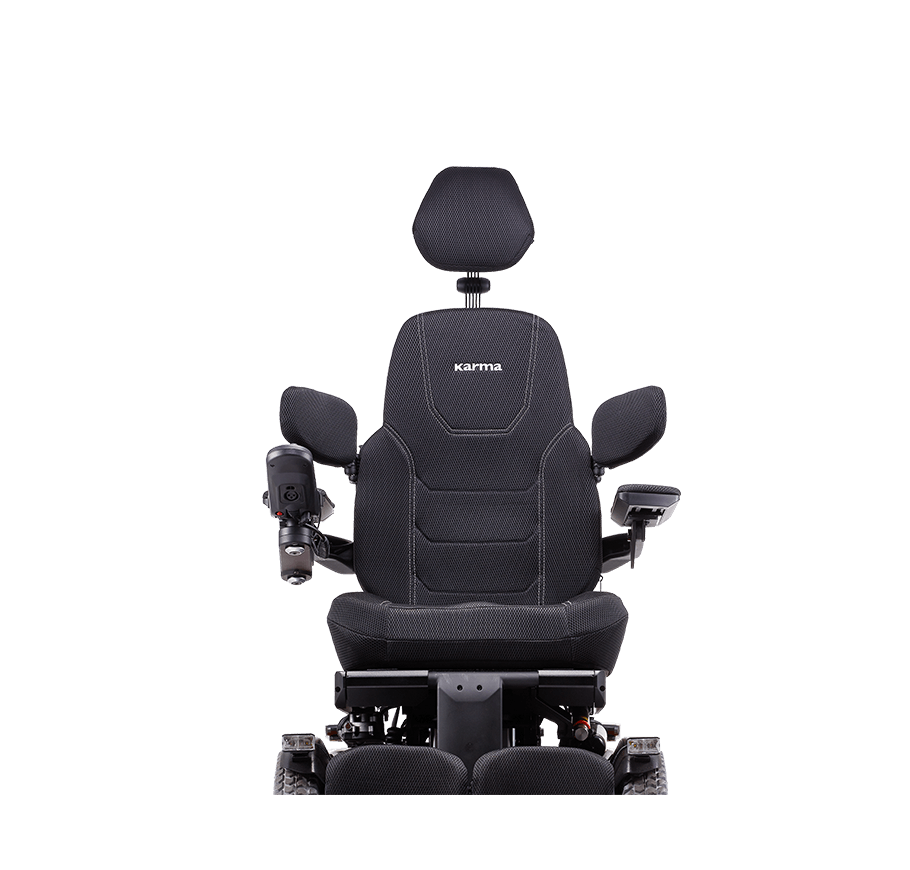

Highly Configurable Rehab Seat
The seating system is designed to optimize the seating comfort to the user. It can be adjusted in seat depth, seat width, backrest settings, as well as armestand legrests. A rail on each side provide mounting point for accessories like hip supports or safety belts. The seat pan is flat so other seating cushion can be fitted on to the seat as well.

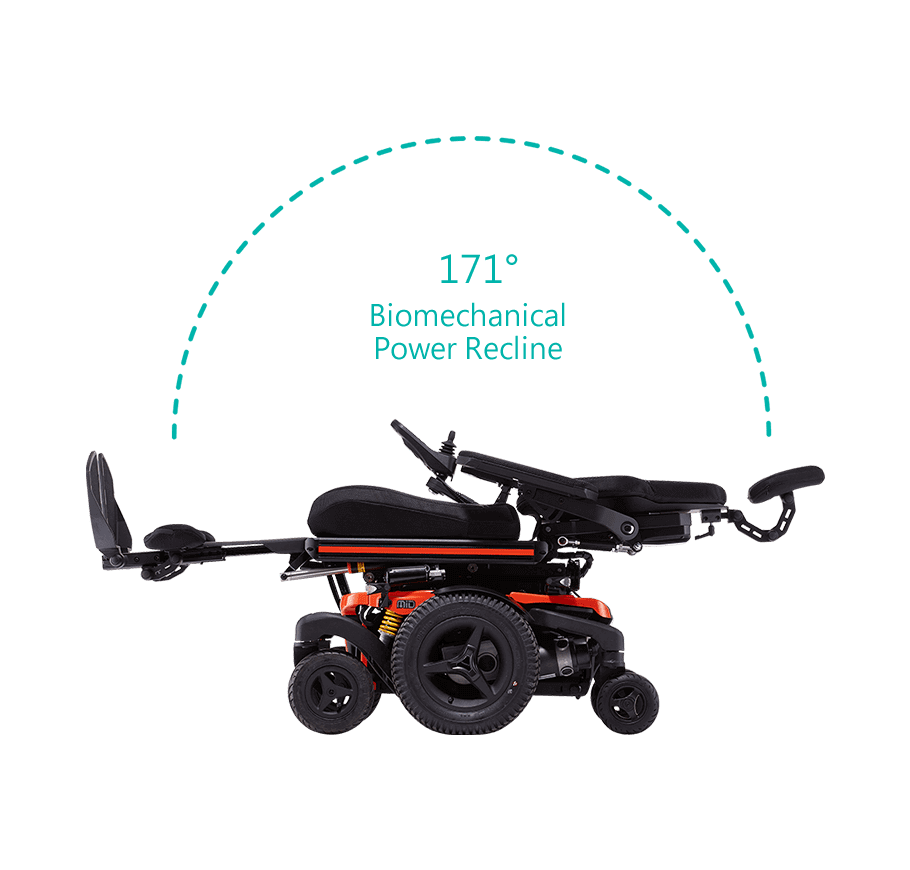

Biomechanical Power Recline
Because it is not always easy to adapt to a new living situation, the MID Lectus is designed with various biomechanics positioning functions to help the user with the transition. It includes power backrest recline and articulated elevating legrest. The seat will traverse with the body, thereby reducing the sheer force to a minimum and most importantly, keeping all the supports in the correct alignment with the body.
50 degree Centre Gravity tilt
The centre gravity tilt ensures pressure relief and a high degree of comfort. The tilt can also be used when driving down a slope for compensating the negative seat angle. This provides a more stabile seat position and safe
driving.

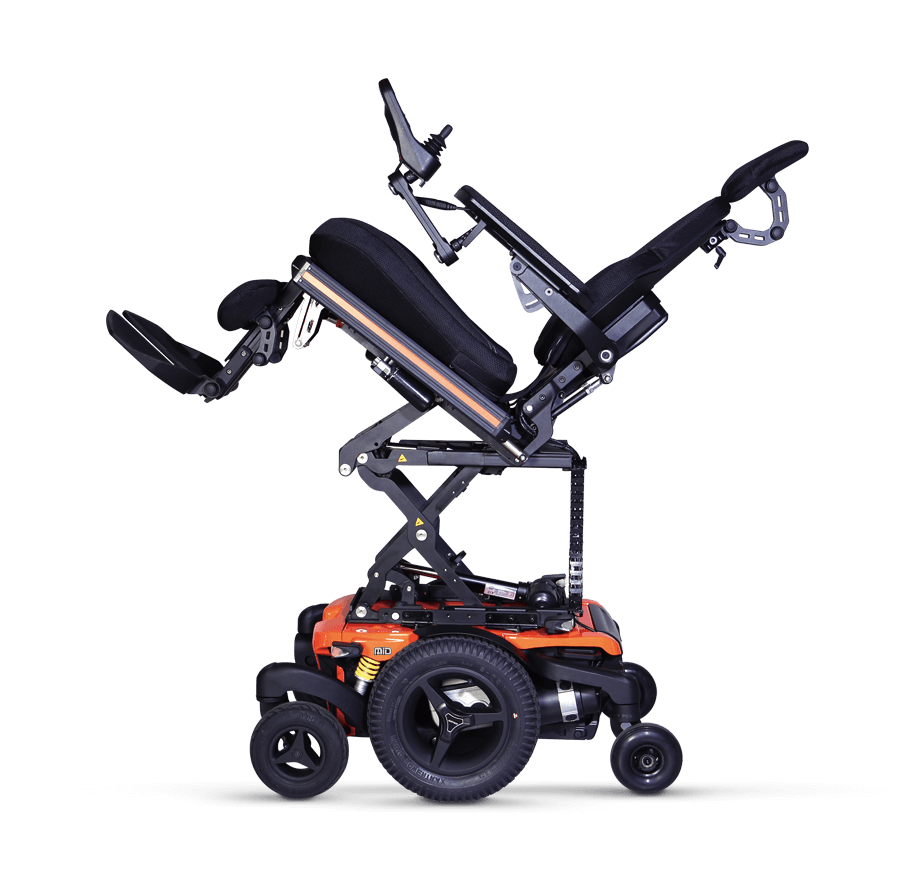

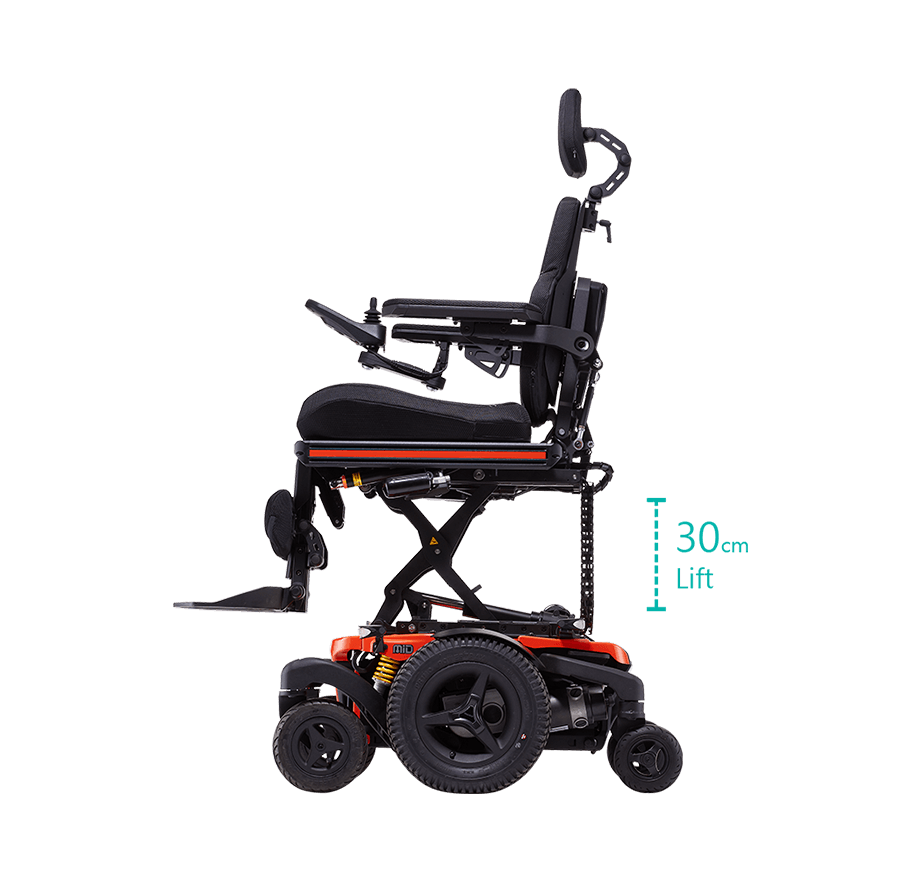

30 cm Sky-high Power Seat Lift
The seat lift is centrally mounted into the chassis. With this lift, the seat can be raised step less up to 300 mm. This enables the user to have more freedom of movement, not only in the horizontal area but also in the vertical area.

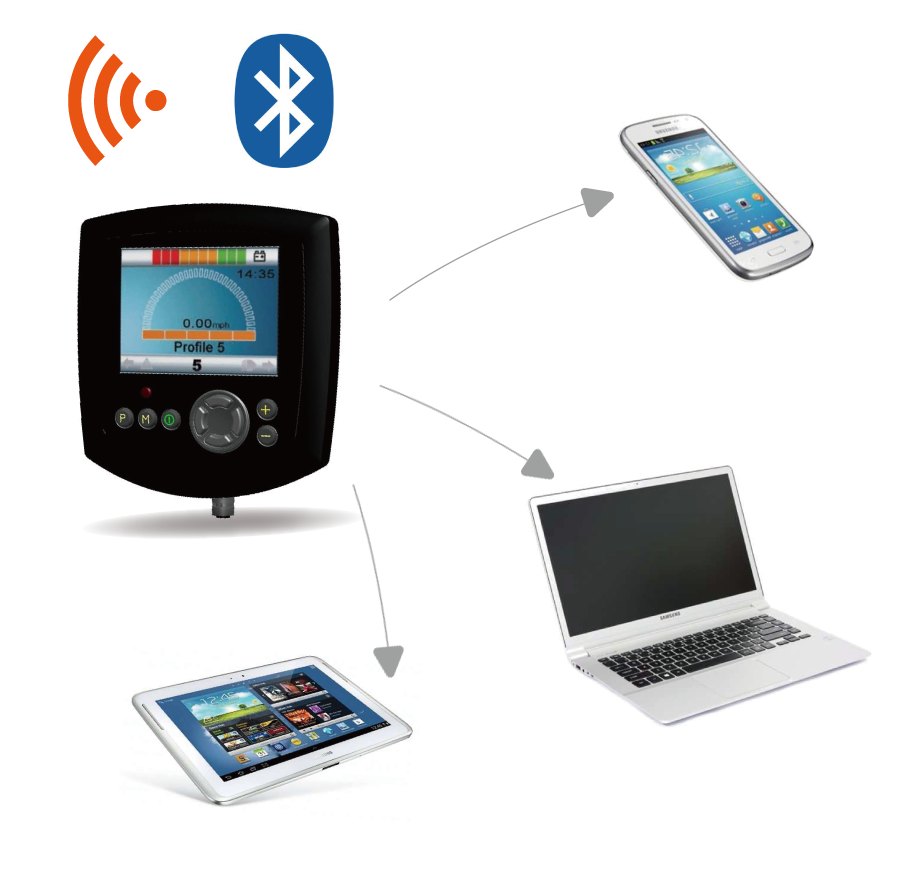

R-Net Control
The R-Net-control system comes standard with the MID Lectus. Operate many electrical functions of the chair using the joystick. This system also serves as a platform for a wide variety of specialize steering controls such as chin control, head control and switch control. It even has the ability to operate infrared and Bluetooth devices using the joystick with R-Net controls. The things you can do with R-Net Control are endless.
Crash Test Approved
The MID Lectus is approved for transportation in accordance with ISO 7176-19. This means it is suitable to be used as a seat in a motor vehicle for transportation.
| Product Model | Mid Lectus | |
| Seating System | Minimum | Maximum |
| Nominal seat width (mm)* | 420 ~ 520 mm, 50 mm increment | |
| Nominal seat depth (mm)** | 400 ~ 600 mm, 25 mm increment | |
| Backrest height without cushion (mm) | 685 | 695 |
| Backrest height with cushion (mm) | 615 | 625 |
| Headrest height above seat (mm) | 695 | 800 |
| Armrest to seat distance without cushion (mm) |
250 | 250 |
| Armrest to seat distance with cushion (mm) | 140 | 140 |
| Front location of armrest structure (mm) |
265 | 665 |
| Seat surface height at front edge without cushion (mm) |
470 | 770 |
| Seat surface height at front edge with cushion (mm) |
580 | 880 |
| Footrest to seat distance without cushion (mm) |
275 | 405 |
| Footrest to seat distance with cushion (mm) | 385 | 510 |
| Effective seat width (mm) | 420 ~ 520 mm, 50 mm increment | |
| Effective seat depth (mm) | 380 | 555 |
| Seat plane angle (X°) | 5 | 49 |
| Backrest angle (X°) | -7 | 87 |
| Seat to backrest angle (X°) | 77 | 171 |
| Leg to seat angle (X°) | 91 | 173 |
| Driving Characteristics | Minimum | Maximum |
| Drive wheel size | 2.50/2.00 – 4 (8″) | |
| Front caster size | 3.00 – 8 (14″) | |
| Rear caster size | 2.00/1.00 – 4 (6″) | |
| Overall length with legrest (mm) | 1165 | 2115 |
| Overall width (mm) | 615 | 715 |
| Overall height (mm) | 690 | 1750 |
| Folded length (mm) | 830 | – |
| Folded width (mm) | 615 | – |
| Folded height (mm) | 1115 | – |
| Total mass (kg) | – | 178 |
| Total mass without batteries (kg) | – | 147 |
| Mass of the heaviest part (kg) | – | 144 |
| Maximum user weight (kg) | – | 136 |
| Drive range (km)*** | – | 36 |
| Maximum speed forward (km) | – | 12 |
| Minimum braking distance from max speed (mm) |
2000 | – |
| Obstacle climbing (mm) | – | 50 |
| Ground clearance (mm) | 70 | – |
| Minimum turning radius (mm) | 810 | – |
| Minimum turning radius without user (mm) | 730 | – |
| Reversing width (mm) | 1170 | – |
| Static stability downhill (X°) | 9 | |
| Static stability uphill (X°) | 9 | |
| Static stability sideways (X°) | 9 | |
| Dynamic stability uphill (X°) | 6 | |
| Ability to climb rated slope (X°)*** | 12 | |
| Electrical System | ||
| Motor power (W) | 320 | |
| Battery capacity (Ah) | 80*2 | |
| Charger output current (A) | 8 | |
| Battery Compartment (L x W x H) (mm) | 180 x 175 x 220 (Front Compartment) | |
