Description
(km-8522hdq24)
Flexx HD
The Flexx Series is all about comfort, support, and performance. If you are ae user looking for an ideal custom-made wheelchair, explore the many options that the Flexx Series has to offer and find the right combination to match you and your needs. Flexx has a folding backrest as standard for convenient storage and easy handling.

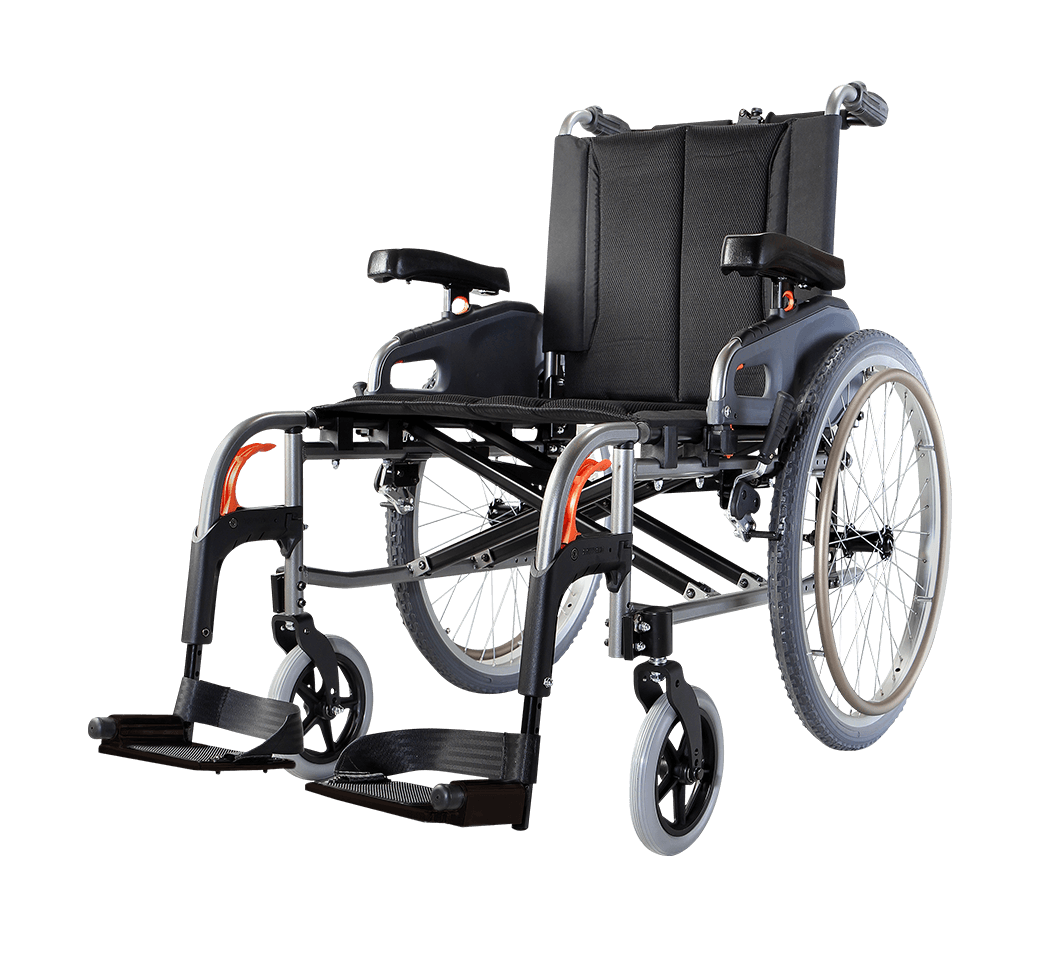

The Flexx HD is the heavy-duty version of the standard Flexx wheelchair. It can support up to 170kg and features extra large seat options with larger width and depth. The sturdy double cross brace and adjustable centre-of-gravity provide better stability. All the Flexx accessories are compatible with the Flexx HD.

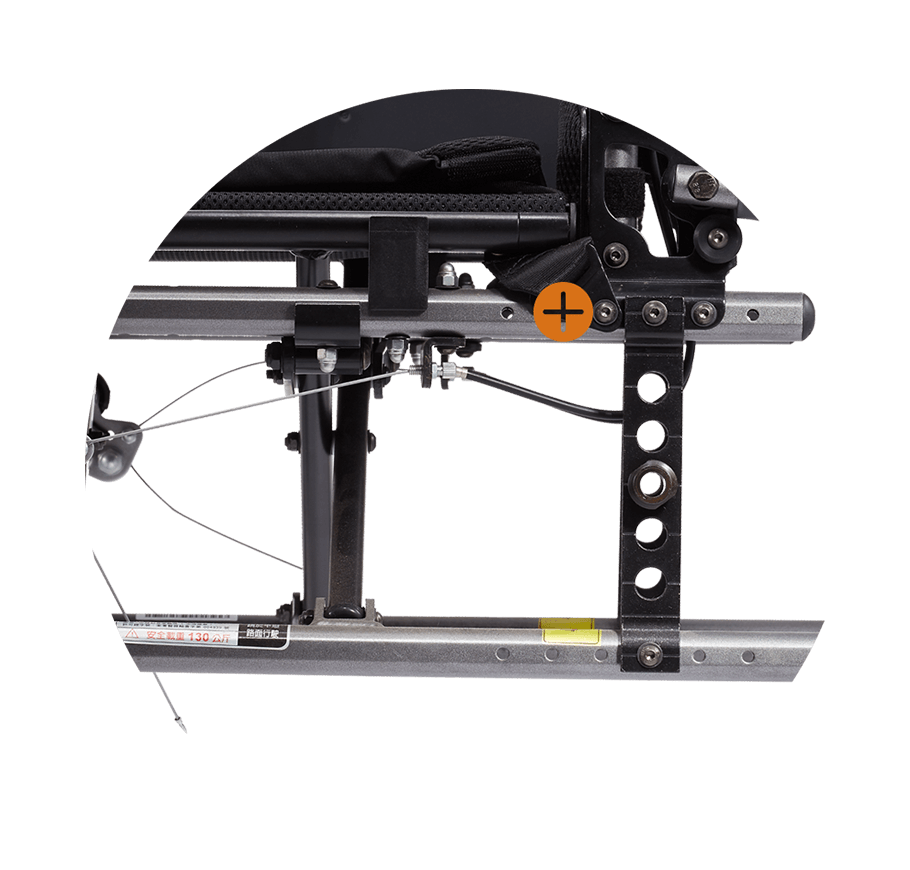

Adjustable Dimensions
The Flexx incorporates many adjustable features to improve comfort, support and mobility such as adjustable backrest angle, backrest height, seat width, seat depth and centre-of-gravity, etc.
Along with the many wheel options, this model highly configurable to suit varying needs

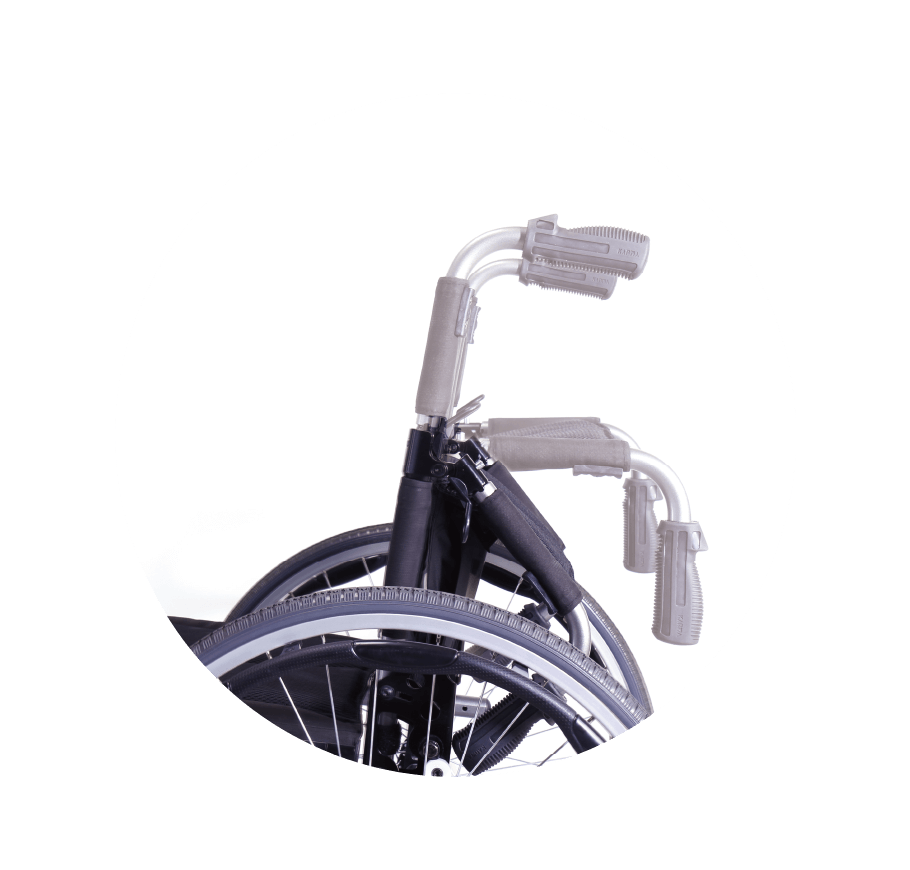

Foldable Push-bar
Attached to the push handles of the wheelchair, the push-bar makes it easy to push and manoeuvre the wheelchair with just one hand and at the same time reinforces the structure of the wheelchair. It also helps alleviate the pain and fatigue that comes from pushing a wheelchair. There is no need to detach because it folds with the wheelchair for easy storage and transportation.
| Product Model | Flexx HD (KM-8022 HD、KM-8522 HD) | ||
| Nominal seat width (mm) | 500 | 550 | 600 |
| Caster x Rear wheel size (in) | 7 x 24Q / 8 x 24Q | ||
| Maximum user weight (kg) | 170 | ||
| Overall length with legrest (mm) | 1100 ~ 1220 | ||
| Overall width (mm) | 720 | 770 | 820 |
| Overall height (mm) | 930 ~ 960 | ||
| Folded length (mm) | 1050 ~ 1130 | ||
| Folded width (mm) | 320 ~ 330 | ||
| Folded height (mm) | 740 ~ 835 | ||
| Total mass (kg) | 18.1 ~ 19.5 | ||
| Mass of the heaviest part (kg) | 11.3 ~ 12.1 | ||
| Handrim diameter (mm) | 480 | ||
| Horizontal location of axle (mm) | 10 | ||
| Minimum turning radius (mm) | 865 ~ 1020 | ||
| Minimum turning radius without user (mm) |
810 ~ 925 | ||
| Pivot width (mm) | 1320 ~ 1430 | ||
| Static stability downhill (X°) | >16 | ||
| Static stability uphill (X°) | 11.8 | ||
| Static stability uphill with anti-tippers (X°) |
N/A | ||
| Static stability sideways (X°) | >16 | ||
| Seat plane angle (X°) | 6 | ||
| Effective seat depth (mm) | 420 ~ 520 | ||
| Nominal seat depth (mm) | 390 ~ 490 | ||
| Effective seat width (mm) | 540 | 590 | 640 |
| Seat surface height at front edge (mm) | 460 ~ 530 | ||
| Backrest angle (X°) | 12 | ||
| Seat to backrest angle (X°) | 96 | ||
| Backrest height (mm) | 430 / 510 | ||
| Headrest height above seat (mm) | N/A | ||
| Leg to seat angle (X°) | 98 | ||
| Footrest to seat distance (mm) | 370 ~ 475 | ||
| Armrest to seat distance (mm) | 215 ~ 295 | ||
| Front location of armrest structure (mm) | 355 | ||
| Product Model | Flexx HD (KM-8022 HD、KM-8522 HD) | ||
| Nominal seat width (mm) | 500 | 550 | 600 |
| Caster x Rear wheel size (in) | 7 x 14Q / 8 x 14Q | ||
| Maximum user weight (kg) | 170 | ||
| Overall length with legrest (mm) | 1080 ~ 1200 | ||
| Overall width (mm) | 680 | 730 | 780 |
| Overall height (mm) | 920 ~ 950 | ||
| Folded length (mm) | 1050 ~ 1130 | ||
| Folded width (mm) | 320 ~ 330 | ||
| Folded height (mm) | 740 ~ 835 | ||
| Total mass (kg) | 17.4 ~ 18.8 | ||
| Mass of the heaviest part (kg) | 14.1 ~ 14.9 | ||
| Handrim diameter (mm) | N/A | ||
| Horizontal location of axle (mm) | 60 | ||
| Minimum turning radius (mm) | 950 ~ 1030 | ||
| Minimum turning radius without user (mm) |
930 ~ 935 | ||
| Pivot width (mm) | 1265 ~ 1415 | ||
| Static stability downhill (X°) | >16 | ||
| Static stability uphill (X°) | 11.8 | ||
| Static stability uphill with anti-tippers (X°) |
N/A | ||
| Static stability sideways (X°) | >16 | ||
| Seat plane angle (X°) | 7 | ||
| Effective seat depth (mm) | 420 ~ 520 | ||
| Nominal seat depth (mm) | 390 ~ 490 | ||
| Effective seat width (mm) | 540 | 590 | 640 |
| Seat surface height at front edge (mm) | 460 ~ 530 | ||
| Backrest angle (X°) | 13 | ||
| Seat to backrest angle (X°) | 96 | ||
| Backrest height (mm) | 430 / 510 | ||
| Headrest height above seat (mm) | N/A | ||
| Leg to seat angle (X°) | 98 | ||
| Footrest to seat distance (mm) | 360 ~ 470 | ||
| Armrest to seat distance (mm) | 210 ~ 290 | ||
| Front location of armrest structure (mm) | 355 | ||
