Description

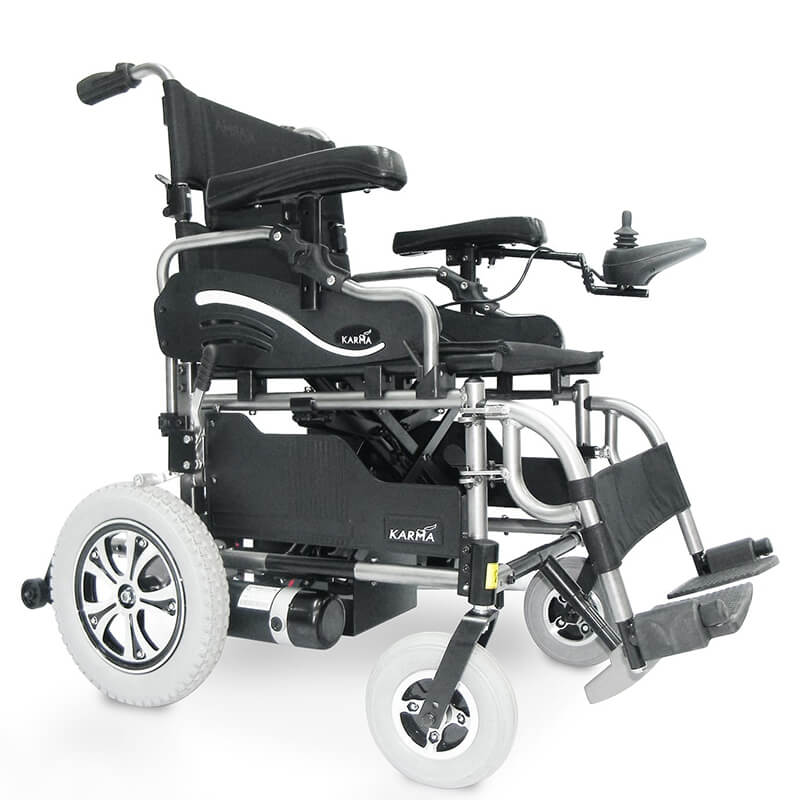

KP-25.2 Falcon
The KP-25.2 is suitable for medium- and short-distance travel. Lightweight and compact, it features a foldable frame and a removable compact battery pack. Perfect for your daily use, the KP-25.2 is both convenient and portable.
Suitable for Mid-Short Distance Journeys and for Both Indoor and Outdoor Use
One of the daily difficulties power wheelchair users encounter is manoeuvring in and through tight spaces like doorways and elevators. The Falcon is a compact medium-size wheelchair, meaning it is easier to manoeuvre around tight corners and through narrow doorways.
No Tools Required

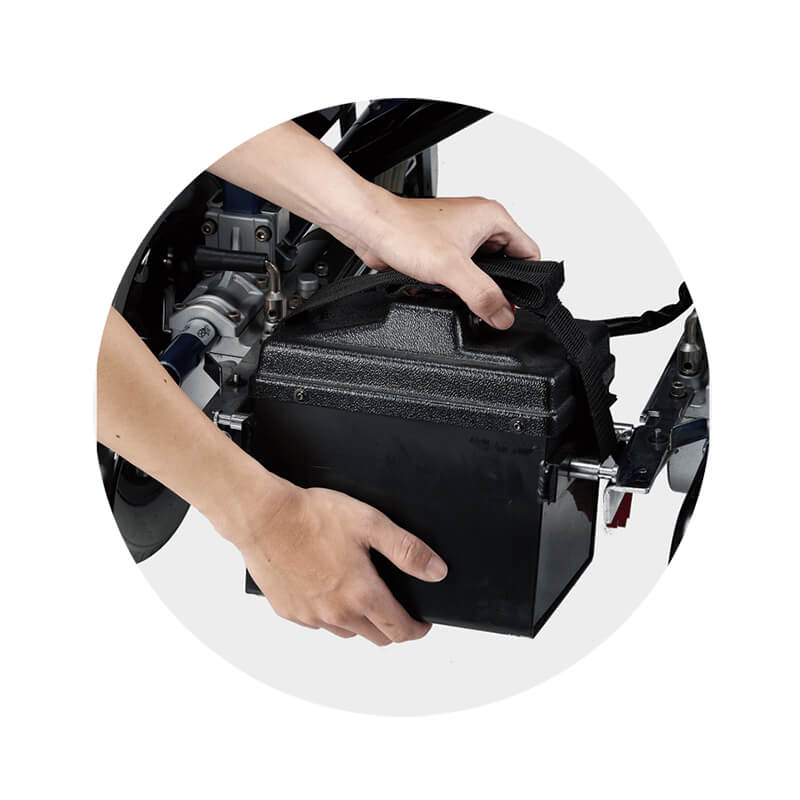

The lightweight, foldable frame and the quick release battery design make transport even easier.

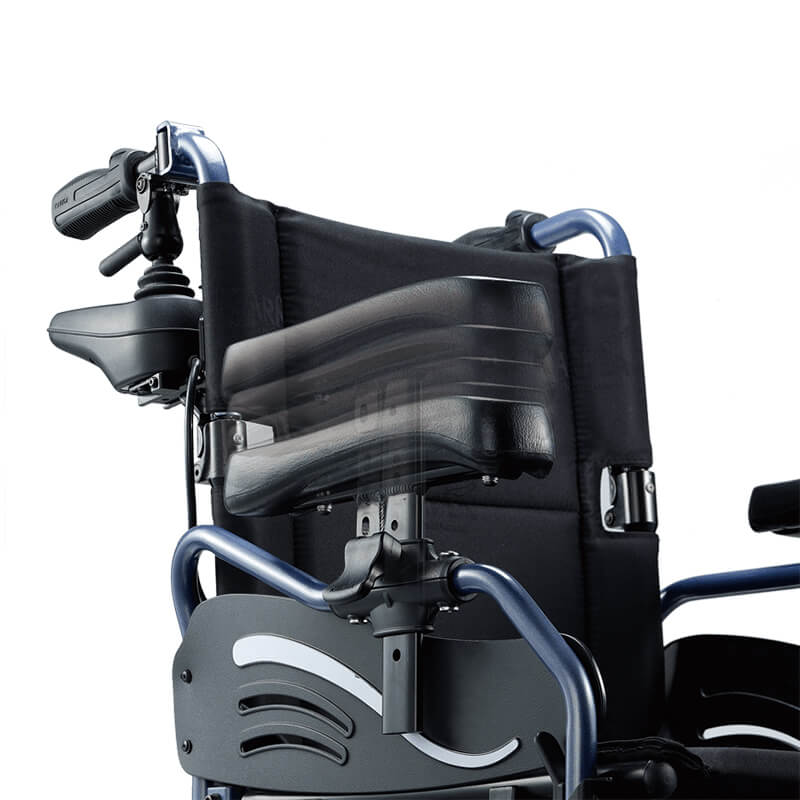

Height Adjustable Armrests
According to the user’s body requirements, the armrest height can be adjusted to four different heights, allowing for a more comfortable fit.

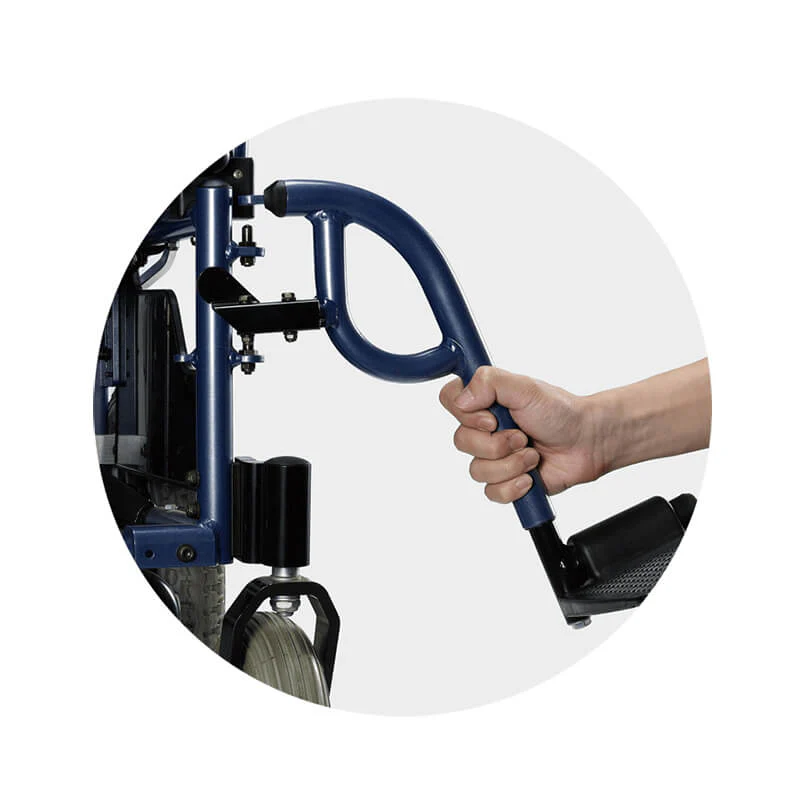

Side Transfer
Side transfer is made easier with the flip-up armrests and the detachable swing-away footrests.
Crash Test Approved
The KP-25.2 is approved for transportation in accordance with ISO 7176-19. This means it is suitable to be used as a seat in a motor vehicle for transportation.
| Product Model | KP-20 Series | ||
| Nominal seat width (mm/in)* |
410 / 16 | 460 / 18 | 515 / 20 |
| Nominal seat depth (mm/in)** | 430 / 16 | 480 / 18 | 480 / 18 |
| Front caster / Drive wheel size (in) | 8 / 12 | 8 / 12 | 8 / 12 |
| Backrest height (mm) | 450 ~ 525 | 450 ~ 525 | 450 ~ 525 |
| Armrest to seat distance (mm) | 225 ~ 285 | 225 ~ 285 | 225 ~ 285 |
| Front location of armrest structure (mm) | 245 ~ 500 | 245 ~ 500 | 245 ~ 500 |
| Seat surface height at front edge (mm) |
525 | 525 | 525 |
| Footrest to seat distance (mm) | 360 ~ 445 | 350 ~ 435 | 350 ~ 435 |
| Effective seat width (mm) | 430 | 480 | 530 |
| Effective seat depth (mm) | 470 | 515 | 515 |
| Seat plane angle (X°) | 6 | 6 | 6 |
| Backrest angle (X°) | 11 | 11 | 11 |
| Seat to backrest angle (X°) | 95 | 95 | 95 |
| Leg to seat angle (X°) | 110 | 110 | 110 |
| Overall length with legrest (mm) | 985 ~ 1115 | ||
| Overall width (mm) | 590 | 640 | 690 |
| Overall height (mm) | 960 ~ 1035 | ||
| Folded length (mm) | 755 | ||
| Folded width (mm) | 380 | 395 | 395 |
| Folded height (mm) | 910 | ||
| Total mass (kg) | 67.0 | 67.6 | 67.6 |
| Total mass without batteries (kg) | 35.7 | 36.3 | 36.3 |
| Mass of the heaviest part (kg) | 30.0 | 30.6 | 30.6 |
| Maximum user weight (kg) | 115 / 135 (pneumatic tires) | ||
| Motor power (W) | 200 | ||
| Battery capacity (Ah) | 50*2 | ||
| Charger output current (A) |
6 | ||
| Drive range (km) *** | 32 | ||
| Battery Compartment (L x W x H) (mm) |
220 x 170 x 175 (Single Compartment) | ||
| Maximum speed forward (km) | 6 | ||
| Minimum braking distance from max speed (mm) |
1000 | ||
| Obstacle climbing (mm) | 50 | ||
| Ground clearance (mm) | 60 | ||
| Minimum turning radius (mm) | 780 | 955 | 1130 |
| Minimum turning radius without user (mm) |
650 | 825 | 1000 |
| Reversing width (mm) | 1180 | 1220 | 1260 |
| Static stability downhill (X°) |
16 | ||
| Static stability uphill (X°) |
14 | ||
| Static stability sideways (X°) |
16 | ||
| Dynamic stability uphill (X°) |
6 | ||
| Ability to climb rated slope (X°) | 12 | ||
