Description

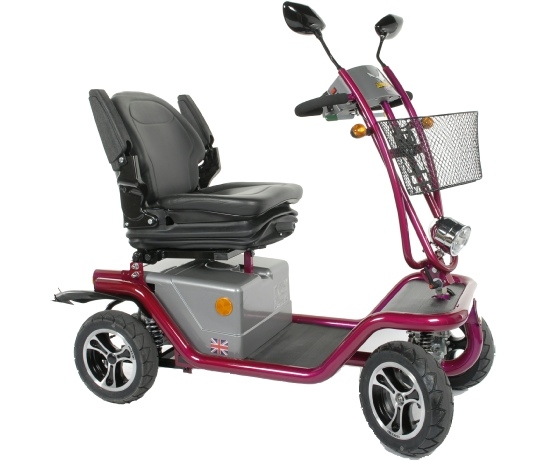

The Saxon is the standard 8mph mobility scooter from Horizon. It’s design comes from the successful Mayan AC and Aztec mobility scooters.
Sharing the same design, the Saxon is ideal for use around town. From going shopping to seeing friends, comfort and durability is key.
Using the same waterproof switches and electronics, the Saxon can be used in all weathers. Below is a video of its sister scooter, the all terrain AC Mayan proving that water and bad weather is no obstacle.
Full suspension all round and long travel springs ensure that you receive a smooth comfortable ride. An optional suspension seat is the ideal accompaniment to give you an even better riding experience.
From choosing your custom colour, you can get the best scooter for your needs and guaranteed years of reliable service.
| Length | 1400mm / 55″ |
| Width | 610mm / 24″ |
| Maximum Height | 1260mm / 50″ |
| Transport Height | 520mm / 21″ |
| Weight | 137kg / 302lbs |
| Maximum User Weight | 133.5kg / 21stone / 294lbs |
| Maximum Speed | 4mph , 8mph |
| Maximum Obstacle Climb | 75mm / 3″ |
| Maximum Obstacle Descent | 75mm / 3″ |
| Width Between Arms | 510mm |
| Seat Depth | 430mm |
| Seat Back Height | 480mm |
| Armrest Height | 240mm |
| Seat To Footplate Height | 450mm / 550mm |
| Front Tyres | 100 / 60 – 8 13″ |
| Rear Tyres | 100 / 60 – 8 13″ |
| Tyre Pressures | 30psi |
| Standard Batteries | 50ah |
| Optional Batteries | 75ah / 100ah |
| Standard Charger | 24v5ah |
| Optional Charger | 24v8ah |
| Range With 50ah Batteries | ~40km |
| Range With 100ah Batteries | ~55km |
| Motor Continuous Power Rating | 640W |
| Maximum Controller Current Draw | 120ah |
| Fuses / Circuit Breakers | 70ah Circuit Breaker |
| Battery | 15ah Manual Reset |
| Charger Circuit | 10a 20mm |
| Ignition | 2.5a 20mm |
| Controller | 5w / 24v 149 – BA15S |
| Indicators | 1w / 24v LED |
| Headlight | 75 / 70w 24v H4 |
| Prices | |
| 75ah Upgrade | £220 |
| 8ah Charger | £87 |
| Orthopaedic Reclining Seat | £374 |
| Full Suspension Seat | £385 |
| Weather Car With Hard Screen | £795 |
| Stick / Crutch Holder | £99 |
| Oxygen Bottle Carrier | £99 |
| Accessory Bracket | £99 |
| Rear Locking Luggage Plate | £69 |
| Givi Locking Luggage Box | £324 |
| PU Puncture Proofing | £69 |
| Flashing Beacon | £299 |
