Ergo 3

The Next Generation of Lightweight Mobility

The Karma Ergo Series blends ergonomic excellence with lightweight mobility, offering natural balance from head to lower back. This innovative design reduces the effort needed to maintain an upright posture, enhancing social interactions with more comfort and vitality.

At the heart of this transformation lies the patented Ergo Back and market-proven S-Ergo Seat. Discover the future of seating luxury with the Ergo 3 – where form, function, and well-being converge in perfect harmony.

Advanced Ergo Seating System

Senior wheelchair users tend to have weaker upper body control which leads to slouched posture or downward-facing head position. The Ergo Seating System addresses this common issue by incorporating scientifically proven seating angles, effectively promoting equilibrium in body posture.

Ergo 3 features the optimal seating angles to:
– Promote a stable, healthy posture
– Alleviate chronic sitting discomfort
– Enhance field of vision
– Improve social interactions

Relaxed Sitting, Healthy Living

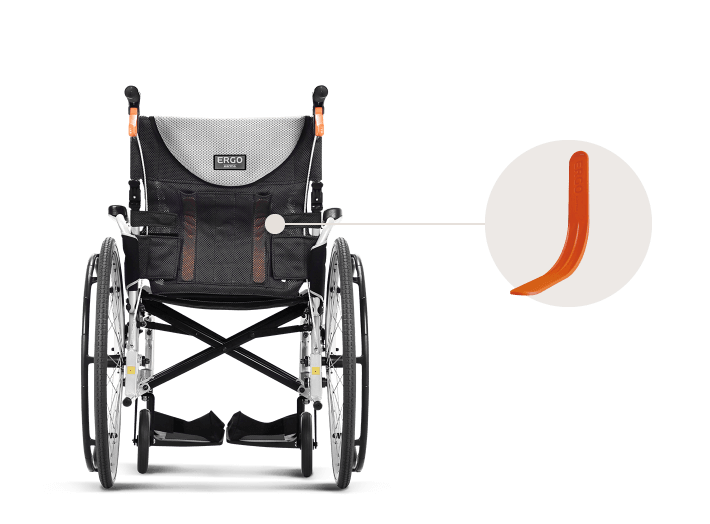

Patented Ergo Lumbar Support

Karma’s innovative S-Ergo Backrest enhances both comfort and stability, allowing users—especially those with reduced muscular endurance—to maintain proper, healthy posture with ease.

Karma’s Ergo Series lightweight wheelchairs include a set of adjustable curved inserts that provide direct lumbar support and maximize comfort.

ntuitive Design

Designed with both users and caregivers in mind, all movable parts are highlighted in high-visibility orange for easy identification and operation.

Push & Pull Brake System

Just push the attendant brake to park the chair, and pull to unlock. Ideal for caregivers who can’t continuously bend over to park the wheelchair.

Flip-Back Armrests

Makes it easy to get on and off the wheelchair or roll closer to a table or desk.

Detachable Swing-Away Footrests

Allows for easy transfer, on and off the wheelchair and detaches with no tools required

Multi-Functional Side Guards

Discreet, easily accessible pockets are elegantly integrated into the inner sides of the side guards for added convenience, while the outer sides feature reflective accents to enhance visibility and safety outdoors.

Lightweight Innovation

Despite its many innovative features, Ergo 3 is one of the lightest wheelchairs on the market, with a total weight of just 11.9 kg (about 26 pounds) in its base configuration.

Optional Patented Ergo Anti-Tippers

Quick-Release

to Overcome Curbs in ONE Single Step

Specification

Product Model	Ergo 3
Nominal seat width (mm/in)*	410 / 16	460 / 18	510 / 20	410 / 16	460 / 18	510 / 20	410 / 16	460 / 18	510 / 20
Nominal seat depth (mm/in)**	435 / 17	435 / 17	435 / 17	435 / 17	435 / 17	435 / 17	435 / 17	435 / 17	435 / 17
Front caster / Rear wheel size (in)	6 / 14 7 / 14	6 / 14 7 / 14	6 / 14 7 / 14	6 / 20 7 / 20	6 / 20 7 / 20	6 / 20 7 / 20	7 / 24	7 / 24	7 / 24
Backrest height (mm)	435	435	435	435	435	435	435	435	435
Headrest height above seat (mm)	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Armrest to seat distance (mm)	220	220	220	220	220	220	220	220	220
Front location of armrest structure (mm)	0 350	0 350	0 350	0 350	0 350	0 350	0 350	0 350	0 350
Seat surface height at front edge (mm)	435 485	435 485	435 485	435 485	435 485	435 485	485	485	485
Footrest to seat distance (mm)	385 – 460	385 – 460	385 – 460	385 – 460	385 – 460	385 – 460	385 – 460	385 – 460	385 – 460
Effective seat width (mm)	420	470	520	420	470	520	420	470	520
Effective seat depth (mm)	435	435	435	435	435	435	435	435	435
Seat plane angle (X°)	6	6	6	6	6	6	6	6	6
Backrest angle (X°)	20	20	20	20	20	20	20	20	20
Seat to backrest angle (X°)	104	104	104	104	104	104	104	104	104
Leg to seat angle (X°)	105	105	105	105	105	105	105	105	105
Overall length with legrest (mm)	1025 – 1050	1025 – 1050	1025 – 1050	1025 – 1050	1025 – 1050	1025 – 1050	1025 – 1050	1025 – 1050	1025 – 1050
Overall width (mm)	575	625	675	595	645	695	595	645	695
Overall height (mm)	860 910	860 910	860 910	860 910	860 910	860 910	860 910	860 910	860 910
Folded length (mm)	770 (Q14)*** 770 (F14)****	770 (Q14) 770 (F14)	770 (Q14) 770 (F14)	770 (Q20) 780 (F20)	770 (Q20) 780 (F20)	770 (Q20) 780 (F20)	770 (Q24) 820 (F24)	770 (Q24) 820 (F24)	770 (Q24) 820 (F24)
Folded width (mm)	245 (Q14) 285 (F14)	245 (Q14) 285 (F14)	245 (Q14) 285 (F14)	245 (Q20) 310 (F20)	245 (Q20) 310 (F20)	245 (Q20) 310 (F20)	245 (Q24) 310 (F24)	245 (Q24) 310 (F24)	245 (Q24) 310 (F24)
Folded height (mm)	660 (Q14) 700 (F14)	700 (Q14) 735 (F14)	740 (Q14) 780 (F14)	660 (Q20) 700 (F20)	700 (Q20) 735 (F20)	740 (Q20) 780 (F20)	660 (Q24) 700 (F24)	700 (Q24) 735 (F24)	740 (Q24) 780 (F24)
Total mass (kg)	11.9 12.3	12.2 12.6	12.5 12.9	13.1 13.3	13.4 13.6	13.7 13.9	13.8	14.1	14.4
Mass of the heaviest part (kg)	8.0 8.4 (Q14)	8.3 8.7 (Q14)	8.6 9.0 (Q14)	8.2 8.4 (Q20)	8.5 8.7 (Q20)	8.8 9.0 (Q20)	8.4 (Q24)	8.7 (Q24)	9.0 (Q24)
	10.1 10.5 (F14)	10.4 10.8 (F14)	10.7 11.1 (F14)	11.3 11.5 (F20)	11.6 11.8 (F20)	11.9 12.1 (F20)	12.0 (F24)	12.3 (F24)	12.6 (F24)
Maximum user weight (kg)*****	115	115	115	115 / 125	115 / 125	115 / 125	115 / 125	115 / 125	115 / 125
Minimum turning radius (mm)	895	900	910	895	900	910	895	900	910
Minimum turning radius without user (mm)	745	750	760	745	750	760	745	750	760
Pivot width (mm)	1115	1135	1155	1115	1135	1155	1115	1135	1155
Static stability downhill (X°)	14	14	14	14	14	14	14	14	14
Static stability uphill (X°)	14	14	14	14	14	14	14	14	14
Static stability sideways (X°)	14	14	14	14	14	14	14	14	14
Handrim diameter (mm)	N/A	N/A	N/A	435	435	435	520	520	520
Horizontal location of axle (mm)	45	45	45	45	45	45	45	45	45
